SWIR 640*512 15μm Infrared Camera Core

SWIR 640*512 15μm Infrared Camera Core

Low dark current, low noise and uncooled operation.Using 640×512 resolution short-wave InGaAs detector, equipped with professional imagingand image processing circuit, compact structure, stable performance, small size, low powerconsumption, self-contained active heat dissipation function, clear imaging, easy systemintegration, can detect and identify distant targets.

Features:
Resolution of 640*512
Built-in temperature sensor, built-in TEC cooler
Pixel operational rate > 99%
Supporting Cameralink interface
Compact design and easy to be integrated

Applications:
Spectral imaging
Surveillance (Night Vision)
Semiconductor inspection
Medicine and Biology
Optical fiber communication
More Details

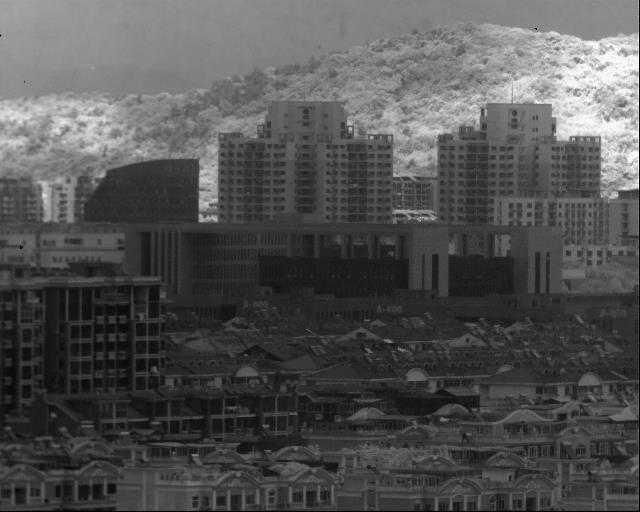

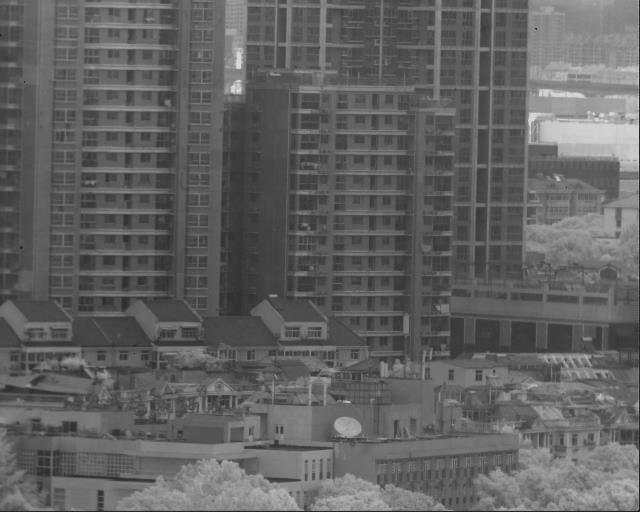

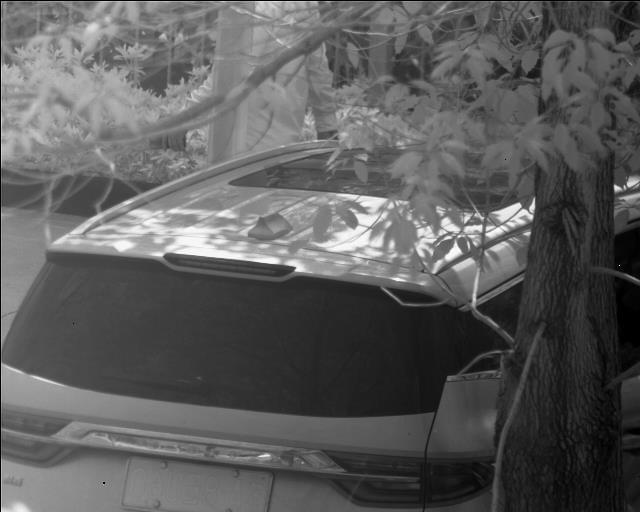

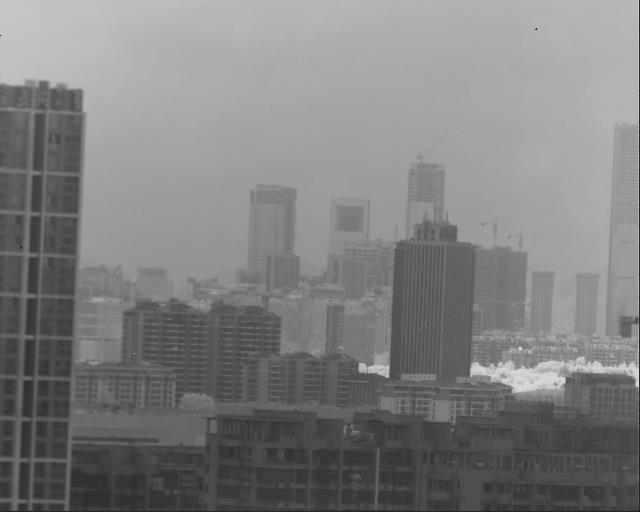

Images with 25mm Fixed focus lens:
