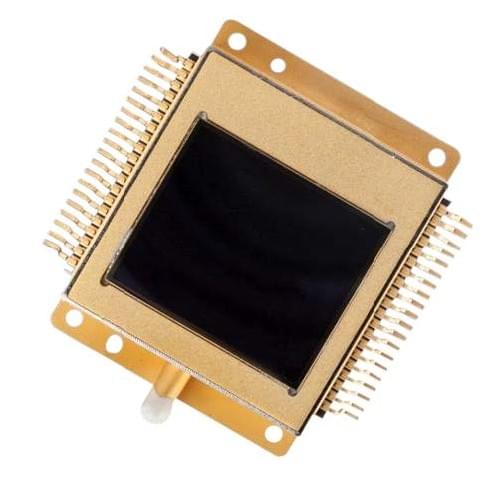

LWIR 1024*760 15um Uncooled Microbolometer Long Wave Infrared Focal Plane Array
The Uncooled Microbolometer infrared FPA detector has the advantages of high resolution, high sensitivity, low thermal noise and fast response. The detector are much suitable for thermography,security surveillance, vehicle night vision and various other applications.
More Details
Detector Type: a-Si
Array size: 1024*760
Pixel pitch: 15μm
Spectral response: 8μm-14μm
Temperature control: TEC
Frame rate: ≤60Hz
NETD(f/1,300K,50Hz): 60mK
Responsivity: ≥10mV/K
Operability: ≥99.5%
Consumption(Typ)(without TEC): 650mW
Dimension(mm)(pins excluded): 38*29*8.6mm
Weight: ≤35g
Operating temperature: -40℃～+60℃
Storage temperature: -40℃～+85℃
